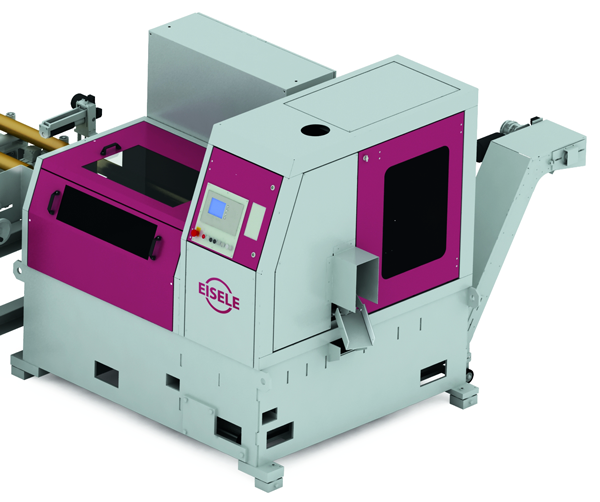

HCS 90 E and HCS 150 E
Large-scale production with a maximum of output and quality. An investment that pays off quickly. High-quality components and technical finesse make the HCS 90 E and HCS 150 E a real BEHRINGER EISELE saw.
Being reliably working saws, focused on the basics, they are the leaders in terms of performance in their class. A drive power of 8 kW and saw blade sizes of up to 315 mm provide for a large application range.
HCS 90 E and HCS 150 E– A complete system package
The high-performance sawing technology, which includes the steel-cutting high-performance automatic circular cold saw, a loading magazine and the chip conveyor, covers a large range of all industrial requirements, providing the highest quality at an unbeatable price-performance ratio.
Behringer Eisele HCS 70 and HCS 90 E Technical Data
Model | HCS 70 | HCS 90 E | |
Saw blade diameter | [mm] | 250 / 285 / 315 | 250 / 285 / 315 |
Cutting range 90° round | [mm] | 10 - 75 | 12 - 90 |
Cutting range 90° squaret | [mm] | 10 x 10 - 60 x 60 | 12 x 12 - 65 x 65 |
Standard blade speed | [1/min] | 25 - 215 | 25 - 215 |
Drive power – frequency-controlled | [kW] | 8 | 8 |
Min. rest piece length | [mm] | 70 | 60 |
Feed length single stroke | [mm] | 1000 | 1000 |
Max. material feed rate | [mm/sec] | 1250 | 1000 |
Saw feed rate | [mm/sec] | 0,5 - 40 | 0,5 - 40 |
Dimensions without magazine L x W x H |
[mm] | 2020 x 1736 x 2064 | 2480 x 1850 x 2000 |
Weight without magazine (approx.) | [kg] | 2800 | 3200 |
