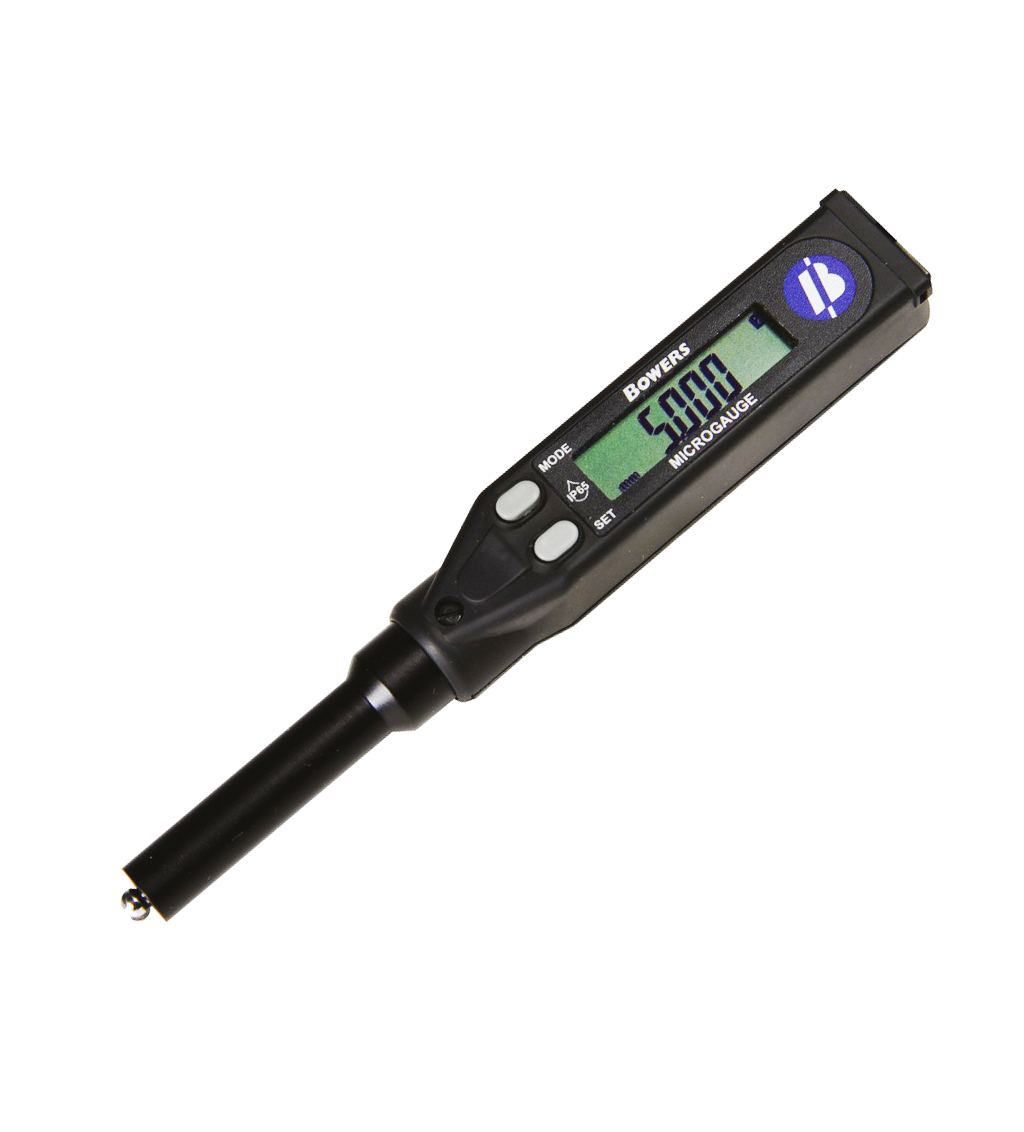

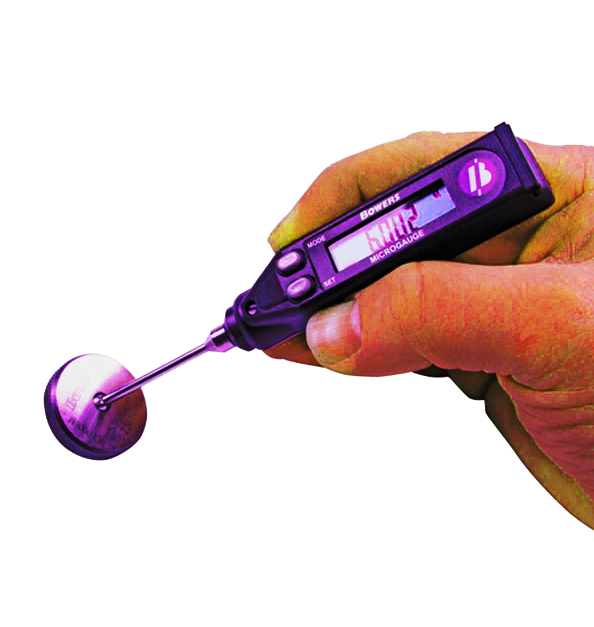

Bowers MicroGauge - Bore Gauge  MGSTOP Series are devised as a convenient transfer tools that are used in the process of accurately measuring smaller bore and holes from 0.95 to 10.35mm. The 2 points Bowers MicroGauge is designed with a handy form factor and intended for many hour of your productive inspection on any factory floor.  Bowers digital readout and measuring head together are about the same size as a pen which will give the advantage for measuring small precision parts and for any fabricators who need to have their gauge with them all the time.

Equipped with digital display, your measurement result can be read and easily set using only two buttons and switchable for 0.01/0.001/0.0005mm resolution. The mesurement result can also be transferred via USB cable connection into any compatible devices. The measuring heads are equipped with spherical hard-chromed contact points and are set in appropriate setting rings. Depends on your application and budget, Bowers MicroGauge - Bore Gauge  MGSTOP Series are also available as individual instruments or as full sets. Furthemore, Bowers MicroGauge's setting rings are supplied as standard with traceable UKAS certification. Due to its unique application, Bowers MicroGauge - Bore Gauge  MGSTOP Series are highly regarded in the field of tool-making, watches and small precision, medical devices fabrication and many more



Bowers MicroGauge - Bore Gauge  MGSTOP Features:

  • Measuremnt range: 1-6mm
  • Digital display for faster rates of measuring
  • Switchable resolution 0.01/0.001/0.0005mm
  • Simple 2-button operation and data record fucntions
  • Clear LCD display
  • Data output: RS232 / USB cable connection
  • Linearity: Diameter 1.0-1.5 max 2% of measuring travel, min 0.001mm.
  • Diameter 1.5-6 max 1% of measuring travel, min 0.001mm
  • Repeatability : 0.001mm
  • Available as individual instruments or sets
  • UKAS-certificates as standard with all setting rings
  • Hard-chromed ball-contacts
  • Depth-stops available
  • Stand available as an optional



SPESIFIKASI Bowers MicroGauge - Bore Gauge MGSTOP Series

Bowers MicroGauge - Bore Gauge  MGSTOP Series Ordering Guide:


Code No.Range (mm) Product:
MGSTOP1 0.95-1.55
MGSTOP2 1.50-2.45
MGSTOP3 2.25-4.25
MGSTOP4 3.65-6.35
MGSTOP5 6.15-10.35
