Untuk mendapatkan informasi lebih lengkap tentang:

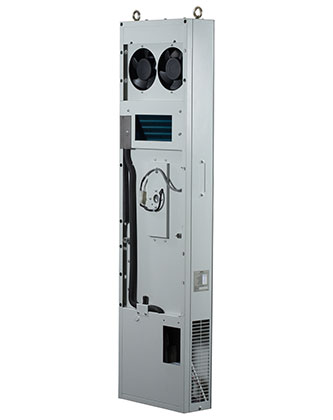

Dindan Cooling Console Linear 1200 WATT

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Dindan Cooling Console Linear 1200 WATT is devised  as an integrated cooling unit in maintaining higher performance on dispersing heat efficiently on any industrial application. With proper airflow management, you can improve your system lifespan and lower the burden on various manufacturing system within affordable budget. Each type of cooling system has been cleverly designed to generate the full BTU.

Compared to blower system, Dindan cooling system is far economical, centralized and can be installed with fully customized arrangement. Dindan Cooling Console Linear 1200 WATT is highly desireable on control system of either semi or fully automation production line as well as older machinery with busy queue which previously costly and not feasible for air conditioning application.

Dindan Cooling Console Linear 1200 WATT is positioned as the basic-range alternative for 24-hours cooling system of direct air circulation. Thanks to its intelligent Hi-prosent control, you can conveniently maintain desired temperature and alert you when to dispose off the water it contained. Its industrial evaporator coil is designed to reach maximum efficiency while distributing steady flow of cold air.

Dindan Cooling Console Linear 1200 WATT units are both eco-friendly and economical as they are powered with hermetic compressor which uses high quality 134a refrigerant pressure and durable servo fans. Dindan Cooling Console Linear 1200 WATT is suitable for server mainframes, light transformator, storage cabinets, electronics control boards and many more. If you are looking cooling unit with higher wattage for faster BTU rate, you might want to consider Dindan Cooling Console Linear 2400 WATT.



Dindan Cooling Console Linear 1200 WATT Features:

  • Durability to the ambient temperature up to 50 degrees.
  • Operates quietly and consume lower power compared to air conditioning system.
  • Slim enclosure of 146mm which made from the slag free materials & resistant to chemical erosion on your factory floor environment.
  • Evaporator coil and condenser coil are designed for 24 hour operational
  • Centrifugal condenser fan provide energy saving capacity which is more effective than the other cooling unit of the same BTU.
  • High efficiency for heat radiation, and capable of maintaining the designed temperature inside the control box.
  • Switching system of controlling temperature is done rapidly that does not cause any damage to a compressor.
  • 19 mm screen with 2 colour LED indicator to display temperature.
  • Light weight with a compact form factor that does not damage the cover of the control box.
  • Internal sensor for detecting over-flown water level to prevent water leaking into the control box.
  • The adjustable tray of water drainage system is provided.
  • On dusty environment, regular vacuum cleaning can be easily done trough its servo fans ventilation.

SPESIFIKASI Dindan Cooling Console Linear 1200 WATT

Dindan Cooling Console Linear Installation Perspective:



Dindan Cooling Console Linear 1200 WATT Ordering Guide:


Characteristics (under normal operating condition at ambient temperature, +35)
Model   40ACU-P23
Capacity (W)   1200
Installation type   panel
Input single-phase (V) 220V+20%/-15%
  230V+15%/-15%
  240V+10%/-20%
frequency (Hz) 50/60
current (A) 3.60
Compressor hermetic type rotary
torque start type low
refrigerant type 134a
lock rotor (A) none
System operate direct expand yes
Hi-prosent control thermostat yes
condensor thermal detector yes
anti-freeze detector yes
overflow condensate drain protection none
Protection over drain protect system yes
secondary drainpan none
Display thermometer (red 7 segment 19mm yes
system status (2 colour LED) yes
Electrical equipment safety device 7A slow-blow fuse
Evaporator coil face area x rows 47.5 sq.inch x 3
servo fan (rpm) 2850
number of fan x cfm (0.18 inH2O) 2 x 158
Condenser coil face area x rows 83.5 sq.inch x 2
centrifugal fan (rpm) 2500
number of fan x cfm (0.2 inH2O) 1 x 647.5
Physical data approx. Weight (kgs)(include Inst.Plt) 46.6
dimension (mm) W:350 D:146 H:1350
condensate drain O.D. 1/2 inch
internal casing electro-galvanize
Air filter width x length (mm) 220 x 250

Harga Dindan Cooling Console Linear 1200 WATT

Silahkan isi formulir di bawah ini untuk mendapatkan harga terbaik dari tim kami.
