Precision Measurement Made Easy with Eisen Pin Gauge Tungsten Carbide EGS Series The EGS series contains 51 pin gauges made from tungsten carbide with handles that have up to ±1μm tolerance for high precision measurements in micron units. Each standard size increases by 0.01 mm increments and all pin gauges are 58 HRC or harder. Custom sizes and combinations can also be made to meet unique customer needs. Sizes are indicated on the plastic cases for gauges up to 1.49mm and are laser engraved on gauges 1.50 mm and larger. Benefits: For high-precision measurement: A package of pin gauges in different sizes range with ±1 μm tolerance. Easy to distinguish point of entry for checking bores, internal diameter and depth of pin and slots on countershaft and many more. Find out more about pin gauges by reading our article here. LFC is the authorized distributor for Eisen Pin Gauges in Singapore and Indonesia. If you are looking for a pin gauge or wish to find out more, feel free to contact us for a consultation.
Precision Measurement Made Easy with Eisen Pin Gauge Tungsten Carbide EGS Series

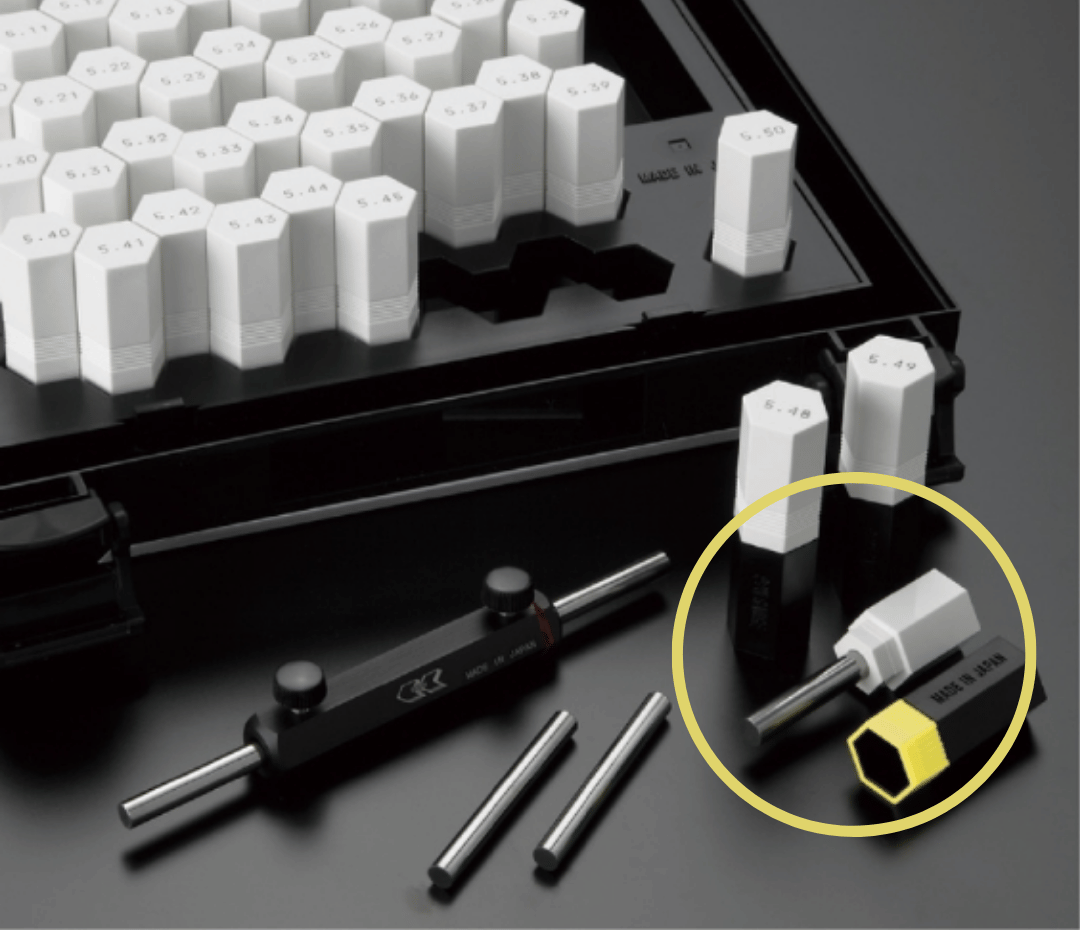

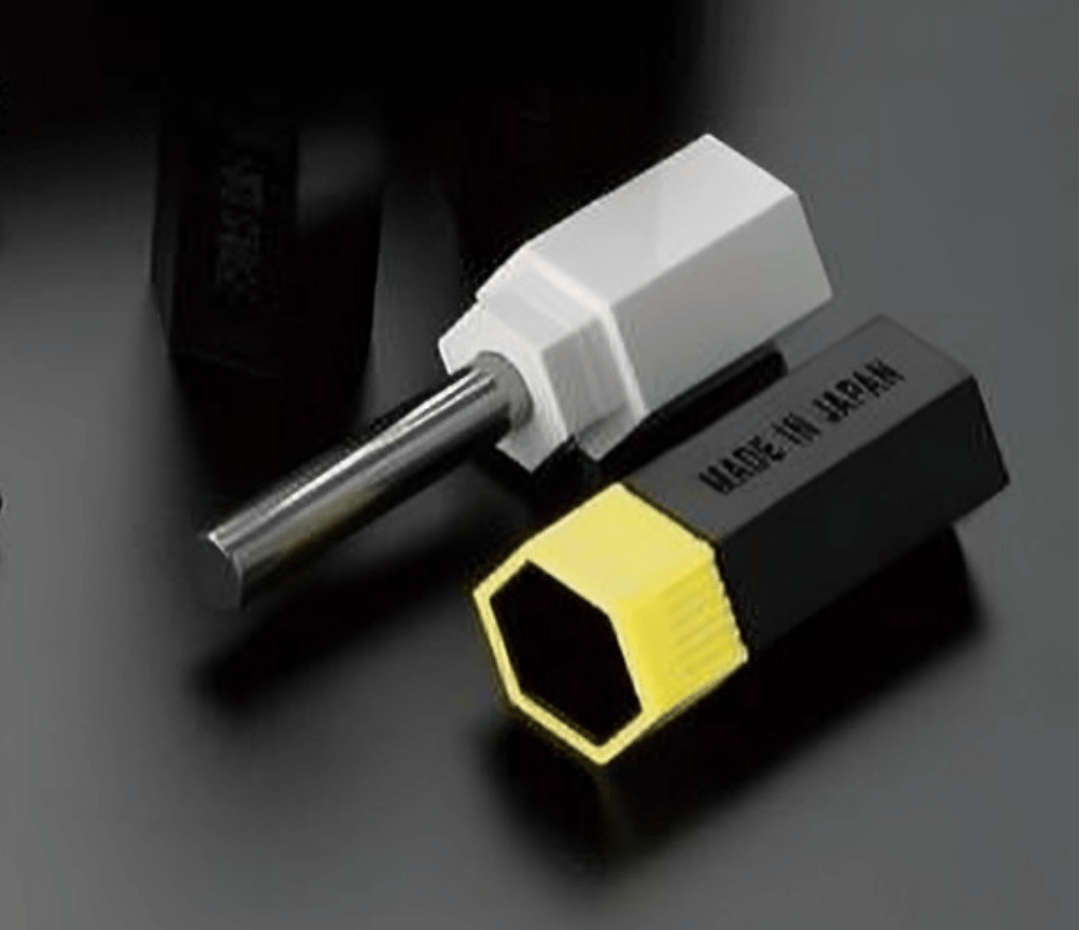

The EGS series contains 51 pin gauges made from tungsten carbide with handles that have up to ±1μm tolerance for high precision measurements in micron units. Each standard size increases by 0.01 mm increments and all pin gauges are 58 HRC or harder. Custom sizes and combinations can also be made to meet unique customer needs. Sizes are indicated on the plastic cases for gauges up to 1.49mm and are laser engraved on gauges 1.50 mm and larger.
Benefits:
- For high-precision measurement: A package of pin gauges in different sizes range with ±1 μm tolerance.
- Easy to distinguish point of entry for checking bores, internal diameter and depth of pin and slots on countershaft and many more.
Find out more about pin gauges by reading our article here.
LFC is the authorized distributor for Eisen Pin Gauges in Singapore and Indonesia. If you are looking for a pin gauge or wish to find out more, feel free to contact us for a consultation.
SPESIFIKASI Eisen Pin Gauge Tungsten Carbide EGS Series Set
Eisen Pin Gauge EGS Set Ordering Guide:
| Set Range (mm) | Length (mm) | Dimensions | Tolerance | |
| Gauge Section | Handle | |||
| 0.10 ~ 0.49 | 10 | 25 | Type I | ±1μm |
| 0.50 ~ 1.49 | 20 | 25 | Type II | ±1μm |
| 1.50 ~ 10.00 | 30 | 26 | Type III | ±1μm |
Eisen Pin Gauge EGS Series With Complete Range Set Ordering Guide:
| Set No. | Step (mm) | Set Range (mm) | No. of Pins | Mass (kg) |
| EGS-0A | 0.01 | 0.20 0.21... 0.49 0.50 | 31 | 1.1 |
| EGS-0B | 0.01 | 0.50 0.51... 0.99 1.00 | 51 | 1.1 |
| EGS-1A | 0.01 | 1.00 1.01... 1.49 1.50 | 51 | 1.1 |
| EGS-1B | 0.01 | 1.50 1.51... 1.99 2.00 | 51 | 1.2 |
| EGS-2A | 0.01 | 2.00 2.01... 2.49 2.50 | 51 | 1.3 |
| EGS-2B | 0.01 | 2.50 2.51... 2.99 3.00 | 51 | 1.3 |
| EGS-3A | 0.01 | 3.00 3.01... 3.49 3.50 | 51 | 1.4 |
| EGS-3B | 0.01 | 3.50 3.51... 3.99 4.00 | 51 | 1.5 |
| EGS-4A | 0.01 | 4.00 4.01... 4.49 4.50 | 51 | 1.6 |
| EGS-4B | 0.01 | 4.50 4.51... 4.99 5.00 | 51 | 1.8 |
| EGS-5A | 0.01 | 5.00 5.01... 5.49 5.50 | 51 | 1.9 |
| EGS-5B | 0.01 | 5.50 5.51... 5.99 6.00 | 51 | 2.1 |
| EGS-6A | 0.01 | 6.00 6.01... 6.49 6.50 | 51 | 2.3 |
| EGS-6B | 0.01 | 6.50 6.51... 6.99 7.00 | 51 | 2.5 |
| EGS-7A | 0.01 | 7.00 7.01... 7.49 7.50 | 51 | 2.7 |
| EGS-7B | 0.01 | 7.50 7.51... 7.99 8.00 | 51 | 2.9 |
| EGS-8A | 0.01 | 8.00 8.01... 8.49 8.50 | 51 | 3.1 |
| EGS-8B | 0.01 | 8.50 8.51... 8.99 9.00 | 51 | 3.4 |
| EGS-9A | 0.01 | 9.00 9.01... 9.49 9.50 | 51 | 3.7 |
| EGS-9B | 0.01 | 9.50 9.51... 9.99 10.00 | 51 | 3.9 |
※Pin gauges also sold individually. Special sizes are also available.
