Untuk mendapatkan informasi lebih lengkap tentang:
ILIX 6614 - Hand Tapping Bit VA DIN 352
Segera Hubungi Kami :
(62) 778 408 6403
(62) 815 3611 0114
sales@lfc.co.id

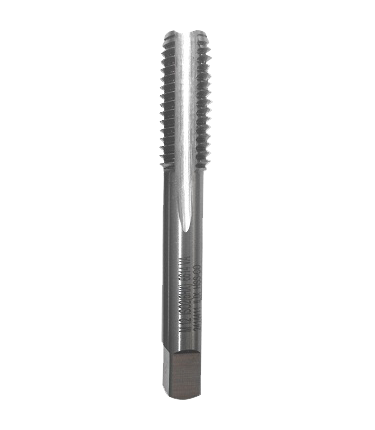

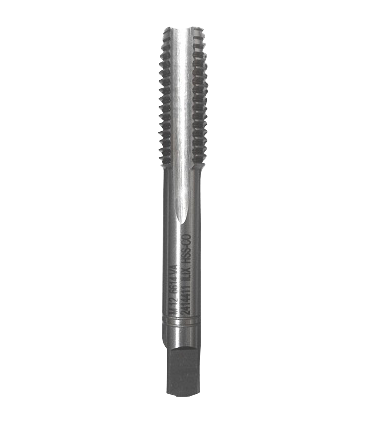

ILIX 6614 - Hand Tapping Bit VA DIN 352 is devised as a practical tapping or manual thread making. The cutting geometry is suitable to threads on cast iron and HSS cobalt for stainless steel. This drill produces higher toughness and aggresive metal removal needed on working on high speed, while maintaining lower temperature thanks to its internal cooling channel.
Ilix 6614 comes in set of 3 pieces, for ISO metric coarse thread as per DIN 13. Ilix 6614 taps are made of the finest HSS cobalt which produces higher toughness and hardness. Ilix 6614 taps are applicable for various materials, such as bronze, stainless steel, alloy, heat treated steel and other material as well. Furthermore if you are also looking for similar twist drill with morse tappered shank to be attached on lathe machine, you might wants to consider ILIX 6220 - Twist Drills Extra Long DIN 1870-1
ILIX 6248 - Twist Drills Long HD DIN 340 Features :
- Pitch sizes of the insert varies fom 0,4 - 1,75 mm
- Diameter size available from M2 - M20
- Produce better finish qualities
- Economical and can be regularly maintained with Torx key and pitch gauges compared to conventional tapping bit.
- PDF catalog can be downloaded here (50 MB)
SPESIFIKASI ILIX 6614 - Hand Tapping Bit VA DIN 352
ILIX 6614 - Hand Tapping Bit VA DIN 352 Ordering Guide:
|
Ø |
Pitch |
Tap drill |
l1 |
l2 |
d2 h9** |
a h12 |
6615 |
|
M2 |
0,4 |
1,6 |
36 |
8 |
2,8 |
2,1 |
• |
|
M2,2 |
0,45 |
1,75 |
36 |
9 |
2,8 |
2,1 |
• |
|
M2,3* |
0,4 |
1,9 |
36 |
9 |
2,8 |
2,1 |
• |
|
M2,5 |
0,45 |
2,05 |
40 |
9 |
2,8 |
2,1 |
• |
|
M2,6* |
0,45 |
2,1 |
40 |
9 |
2,8 |
2,1 |
• |
|
M3 |
0,5 |
2,5 |
40 |
11 |
3,5 |
2,7 |
• |
|
3* |
0,6 |
2,4 |
40 |
11 |
3,5 |
2,7 |
• |
|
M3,5 |
0,6 |
2,9 |
45 |
13 |
4 |
3 |
• |
|
M4 |
0,7 |
3,3 |
45 |
13 |
4,5 |
3,4 |
• |
|
M5 |
0,8 |
4,2 |
50 |
16 |
6 |
4,9 |
• |
|
M6 |
1 |
5 |
50 |
19 |
6 |
4,9 |
• |
|
M7 |
1 |
6 |
50 |
19 |
6 |
4,9 |
• |
|
M8 |
1,25 |
6,8 |
56 |
22 |
6 |
4,9 |
• |
|
M10 |
1,5 |
8,5 |
70 |
24 |
7 |
6,2 |
• |
|
M12 |
1,75 |
10,2 |
75 |
29 |
9 |
7 |
• |
|
M14 |
2 |
12 |
80 |
30 |
11 |
9 |
• |
|
M16 |
2 |
14 |
80 |
32 |
12 |
9 |
• |
|
M18 |
2,5 |
15,5 |
95 |
40 |
14 |
11 |
• |
|
M20 |
2,5 |
17,5 |
95 |
40 |
16 |
12 |
• |
To serve your interest on ILIX cutting bits solution,
kindly contact our sales department.
Harga ILIX 6614 - Hand Tapping Bit VA DIN 352
Silahkan isi formulir di bawah ini untuk mendapatkan harga terbaik dari tim kami.
