Kordt Universal Internal & External Comparator Cordipar

Segera Hubungi Kami :

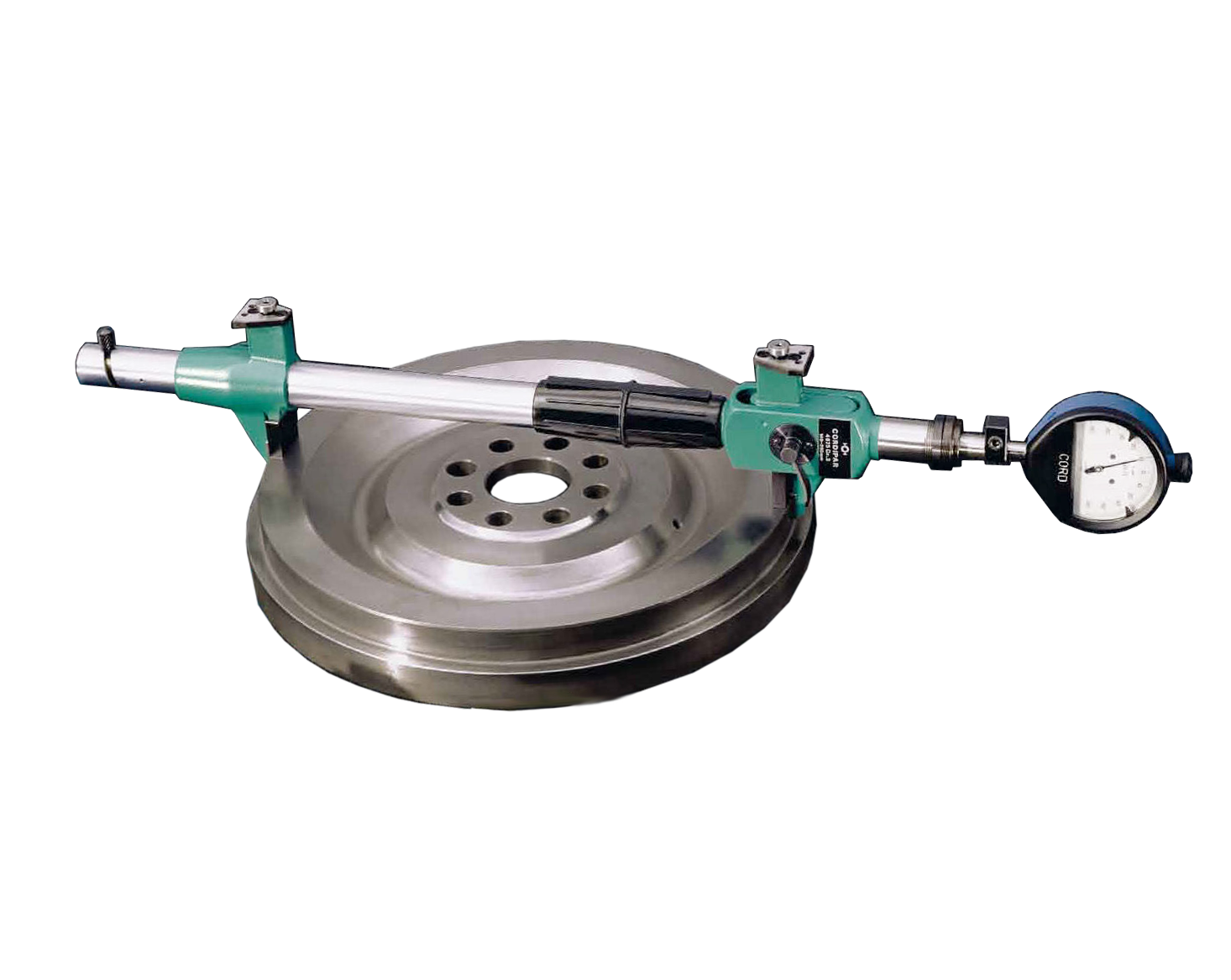

Kordt Universal Internal & External Comparator Cordipar, atau CORDIPAR 4675, adalah alat pengukur panjang presisi tinggi. Dengan desain uniknya, memungkinkan untuk mengukur dimensi eksternal dan internal dengan hanya satu pengaturan. CORDIPAR juga dapat digunakan untuk mengukur perbedaan antara dimensi eksternal dan internal (pengukuran diferensial), serta jarak bore atau groove. Bersama dengan roller pengukur ulir 5086, penentuan diameter pitch juga dimungkinkan.

Fitur :

Akurasi tinggi dengan kereta pengukur di bantalan bola, bahkan pada penggunaan yang berkelanjutan
Histeresis gaya ukur rendah
Pergantian cepat dari pengukuran eksternal dan internal tanpa perlu pengaturan ulang
Permukaan pengukur tungsten karbida paralel rata yang besar untuk pengukuran eksternal
Pertukaran elemen pengukur dengan mudah untuk pengukuran internal
Indikator dial dalam bantalan putar memungkinkan pembacaan yang mudah dalam posisi penggunaan apa pun tanpa kehilangan akurasi
Banyak aplikasi umum yang mungkin karena berbagai aksesori yang tersedia
Pengukuran ulir mungkin dengan menggunakan roller pengukur ulir 5086
Transmisi nilai pengukuran dengan menggunakan transduser atau indikator dial dengan pemancar radio
Cincin Penyetelan Ø 30 mm untuk penyetelan dasar antara pengukuran eksternal dan internal

Manfaat :

Untuk pengukuran internal, untuk reses
Untuk pengukuran internal dengan permukaan paralel rata
Untuk panjang base tangent
Untuk pengukuran taper

SPESIFIKASI Kordt Universal Internal & External Comparator Cordipar

Harga Kordt Universal Internal & External Comparator Cordipar

Silahkan isi formulir di bawah ini untuk mendapatkan harga terbaik dari tim kami.

I authorize the use of the information given above for marketing purposes.

Kordt Universal Internal & External Comparator Cordipar is CORDIPAR 4675 is a high-precision length measuring instrument. With its unique design it is possible to measure external and internal measures with one setting only. CORDIPAR can be also used to measure difference between external and internal dimensions (differential measurement), and bore or groove distances. Together with thread measuring rollers 5086 the determination of pitch diameter is possible.

Features :

High accuracy by a measuring carriage in ball bearings, also at permanent use
Low measuring force hysteresis
Rapid changeover from external and internal measurement without recalibration
Large plain parallel tungsten carbide measuring faces or external mesurement
Easy exchange of measuring elements for internal measurement
Dial indicator in rotary bearings allows easy reading in any use position without loss of accuracy
Many general purpose applications possible due to large range of accessories
Thread measurement possible by using thread measuring rollers 5086
Transmit of measuring values by using transducers or dial gauges with radio transmitter
Adjusting Ring Ø 30 mm for the basic adjustment between external and internal measurement

Benefits :

For internal measurement, for recesses
For internal measurement with plain paralles surfaces
For base tangent length
For taper measurement
