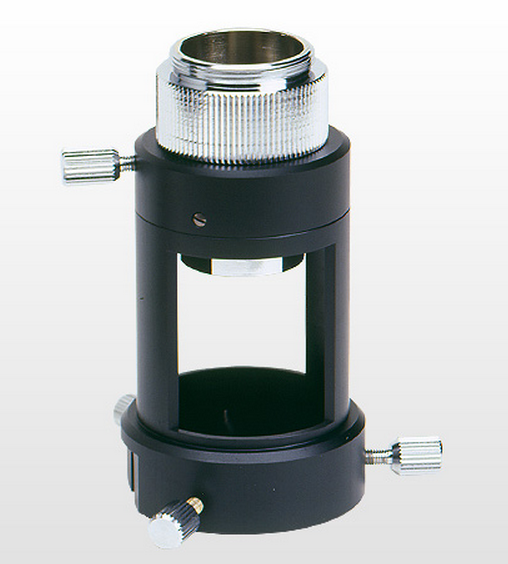

Miruc Eye Piece Lenses OCD is devised as a practical and hands on tool for immediate ibservation ranges from precious jewellery to precision workpiece. Miruc's eyepiece lenses can all be fitted with φ 24 micrometer glass. The diopter correction function allows the scale marks to be focused to match the operator's vision. Also, an optional eyepiece hood is available to cut ambient light and improve visibility and reduce eye fatigue.

By equipping the eyepiece with micrometer onto a microscope, Miruc's eyepiece lenses can also used for wider range of functions, including measuring, inspection, measurement, alignment, positioning, etc. The Micrometers can be custom-ordered to the customer's individual specifications. (Miruc has already produced over 1,000 types of custom ordered micrometers.)

Furthermore, Miruc's microscope eye piece unit can be combined with Miruc's digital catch, Miruc's digital camera adapter and other Miruc's accesories for convenient application in quality inspection of electronic boards, metallography research, Biology-Medical research and even manufacturing or maintenance of plastic mold on a live peer review through WIFI and internet connection.

Note:

1) Locking screw,

2) Whole body of eyepiece lens,

3) Locking of eyepiece lens,

4) Eyepiece micrometer



SPESIFIKASI Miruc Eye Piece Lenses OCD

Miruc's Microscope Eye Piece with Optical Adjustment

Relay Lens C-Mount Adapter data guide table


Eyepiece lensObjective lensField of vision
(vertical x horizontal x diagonal) mm		Monitor magnification
(on 9 inch monitor)		Working distance mm
OCD 10x OBD 1 x 4.5 x 6 x 7 Approx. 29.6 x Approx. 176mm
2 x 2.25 x 3 x 3.5 Approx. 58 x Approx. 85mm
3 x 1.5 x 1.95 x 2.3 Approx. 86 x Approx. 63mm
4 x 1.1 x 1.5 x 1.75 Approx. 118 x Approx. 48mm
5 x 0.9 x 1.2 x 1.4 Approx. 147 x Approx. 39mm
6 x 0.75 x 0.95 x 1.2 Approx. 172 x Approx. 33mm
8 x 0.55 x 0.72 x 0.9 Approx. 232 x Approx. 27mm
10 x 0.45 x 0.6 x 0.7 Approx. 296 x Approx. 20mm
Eyepiece lensObjective lensField of vision
(vertical x horizontal x diagonal) mm		Monitor magnification
(on 9 inch monitor)		Working distance mm
OCD 20x OBD　1 x 2.25 x 3 x 3.5 Approx. 58 x Approx. 176mm
2 x 1.125 x 1.5 x 1.75 Approx. 116 x Approx. 85mm
3 x 0.75 x 0.975 x 1.15 Approx. 172 x Approx. 63mm
4 x 0.55 x 0.75 x 0.875 Approx. 236 x Approx. 48mm
5 x 0.45 x 0.6 x 0.7 Approx. 294 x Approx. 39mm
6 x 0.375 x 0.475 x 0.6 Approx. 344 x Approx. 33mm
8 x 0.275 x 0.36 x 0.45 Approx. 464 x Approx. 27mm
10 x 0.225 x 0.3 x 0.35 Approx. 592 x Approx. 20mm
  • Actual data from use with M-45 Optical lens system, with 2.3 inch CCD camera.
  • If the size of the TV monitor is increased, the monitor magnification will be increased by that amount. (The field of vision will not change.)
  • Please contact our sales engineer for further details

Direct C-Mount Adapter data guide table

■When 2/3" CCD camera is used


Objective lensField of vision
(vertical x horizontal x diagonal) mm		Monitor magnification
(on 9 inch monitor)		Working distance mm
OBD 1 x 4.2 x 5.3 x 6.3 Approx. 32 x Approx. 150mm
2 x 2.28 x 2.9 x 3.5 Approx. 60 x Approx. 80mm
3 x 1.6 x 2 x 2.4 Approx. 85 x Approx. 61mm
4 x 1.2 x 1.55 x 1.9 Approx. 112 x Approx. 48mm
5 x 1 x 1.25 x 1.5 Approx. 136 x Approx. 39mm
6 x 0.82 x 1.05 x 1.3 Approx. 162 x Approx. 33mm
8 x 0.62 x 0.8 x 0.95 Approx. 216 x Approx. 24mm
10 x 0.5 x 0.65 x 0.8 Approx. 264 x Approx. 20mm

■When 1/2" CCD camera is used


Objective lensField of vision
(vertical x horizontal x diagonal) mm		Monitor magnification
(on 9 inch monitor)		Working distance mm
OBD 1 x 3.1 x 4.1 x 4.9 Approx. 42 x Approx. 150mm
2 x 1.7 x 2.2 x 2.6 Approx. 78 x Approx. 80mm
3 x 1.2 x 1.55 x 1.85 Approx. 110 x Approx. 61mm
4 x 0.9 x 1.18 x 1.4 Approx. 147 x Approx. 48mm
5 x 0.75 x 0.95 x 1.15 Approx. 180 x Approx. 39mm
6 x 0.61 x 0.81 x 0.98 Approx. 214 x Approx. 33mm
8 x 0.48 x 0.6 x 0.73 Approx. 286 x Approx. 24mm
10 x 0.4 x 0.5 x 0.6 Approx. 350 x Approx. 20mm
  • Actual data from use with M-45 Optical lens system.
  • If the size of the TV monitor is increased, the monitor magnification will be increased by that amount. (The field of vision will not change.)
  • Please contact our sales department for further details
