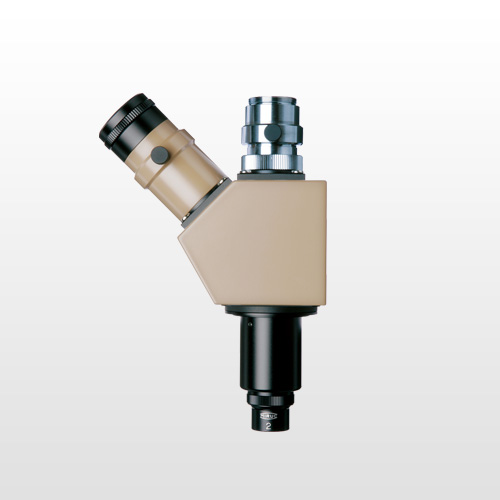

Miruc Lens Barrel Optics With C-Mount Adapter is devised for precision measuring and durability required on various work applications. Each type of scope barrel can accomodate up to 455x magnification and as far as 196mm of working distance. The Miruc's microscope unit is equipped with a slider as standard. It can be used attached to a φ14 shaft. You can use Miruc's lens barrel on wide varieties of improvised application as a toolmaker's microscope, craftman's vision on micro machining, handling precision laser welding on jewellery and many more.

As the Miruc's microscope unit is compact and lightweight, it can be combined in various ways with special stands, and is ideal for mounting onto machinery and devices. Miruc's line of lens barrel are available on both 90° and 45° with high compatibility to your current column stage or indicator stand holder.  Similar with Hubble Space Telescope, Miruc's microscope line-up have a very accurate lens which are lapped and can also be arranged to display imagery on LCD screen for convenient observation.

Furthermore, Miruc's microscope unit can be combined with Miruc's digital catch, Miruc's digital camera adapter and other Miruc's accesories for convenient application in quality inspection of electronic boards, metallography research, Biology-Medical research and even manufacturing or maintenance of plastic mold on a live peer review through WIFI and internet connection.



Miruc Lens Barrel Optics With C-Mount Adapter Features:

  • Optical technology assure undistorted image and reduce false coloring interpretation as in regular digital CCD sensor.
  • Can be equipped with various graduation of micrometer lens
  • Wide range of demand, from standalone use to integration into machinery and devices. (OCD10x, OBD2x included)
  • Suitable as a toolmaker microscope, on micro welding, micro machining and observation with measurement functions.
  • Powerful optical lenses combined with any portable digital camera up to 455x image magnification (depending on model)
  • Durable lenses with minimal oil application for polishing
  • Wide range of combinations with sliding holders, as a device-mounted unit, it can also be used to increase accuracy and save energy in positioning and process supervision
  • Unparalled variety of fittings to correspond to any kind of positioning coupled with smooth sliding action





SPESIFIKASI Miruc Lens Barrel Optics With C-Mount Adapter

 Miruc Lens Barrel Optics With C-Mount Adapter Ordering Guide:



Miruc Lens type MF-1 (B), MR-1 (B), MW-1 (B)

* Lens barrel data guide table (with C-mount adapter attached) / (on 9 inch monitor)


 Field of vision (vertical x horizontal x diagonal) mmMonitor MagnificationWorking
distance
2/3 Inch
CCD		1/2 Inch
CCD		1/3 Inch
CCD		2/3 Inch
CCD		1/2 Inch
CCD		1/3 Inch
CCD
OBD1 x 7 x 9.2 x 11 5.3 x 7 x 8.5 4 x 5.3 x 6.5 18.4 x 24.6 x 32.3 x 196mm
OBD2 x 3.3x4.3x5.2 2.5 x 3.3 x 4 1.9 x 2.5 x 3 39.3 x 51.5 x 68 x 93mm
OBD3 x 2.1 x 2.8 x 3.3 1.6 x 2.1 x 2.5 1.2 x 1.6 x 2 54 x 79 x 106 x 67mm
OBD4 x 1.6 x 2 x 2.5 1.2 x 1.6 x 2 0.9 x 1.2 x 1.4 82 x 110 x 143 x 52mm
OBD5 x 1.3 x 1.6 x 2 1 x 1.3 x 1.5 0.7 x 0.95 x 1.1 103 x 138 x 182 x 42mm
OBD6 x 1 x 1.3 x 1.6 0.8 x 1 x 1.2 0.6 x 0.8 x 0.95 127 x 164 x 214 x 34mm
OBD8 x 0.8 x 1 x 1.2 0.6 x 0.8 x 0.9 0.45 x 0.6 x 0.7 167 x 222 x 290 x 27mm
OBD10 x 0.6 x 0.8 x 0.95 0.46 x 0.6 x 0.72 0.35 x 0.45 x 0.55 212 x 280 x 360 x 20mm





Miruc Lens type MF-1 (B), MR-1 (B)

* Lens barrel data guide table (with C-mount adapter extended 50mm) / (on 9 inch monitor)


 Field of vision (vertical x horizontal x diagonal) mmMonitor MagnificationWorking
distance
2/3 Inch
CCD		1/2 Inch
CCD		1/3 Inch
CCD		2/3 Inch
CCD		1/2 Inch
CCD		1/3 Inch
CCD
OBD1 x 4.2 x 5.5 x 6.5 3.1 x 4.1 x 5 2.4 x 3.2 x 3.8 31 x 40 x 54 x 152mm
OBD2 x 2.3 x 3 x 3.5 1.6 x 2.3 x 2.7 1.3 x 1.7 x 2 58 x 74 x 100 x 80mm
OBD3 x 1.5 x 2 x 2.4 1.2 x 1.6 x 1.9 0.9 x 1.2 x 1.4 82 x 108 x 142 x 61mm
OBD4 x 1.2x1.6x1.9 0.9 x 1.2 x 1.5 0.7 x 0.9 x 1.1 108 x 147 x 188 x 48mm
OBD5 x 1 x 1.3 x 1.5 0.7 x 0.95 x 1.2 0.55 x 0.72 x 0.9 136 x 174 x 232 x 40mm
OBD6 x 0.8 x 1.1 x 1.3 0.6 x 0.8 x 1 0.45 x 0.6 x 0.75 162 x 210 x 280 x 32mm
OBD8 x 0.6 x 0.8 x 1 0.46 x 0.61 x 0.75 0.35 x 0.46 x 0.55 214 x 270 x 360 x 26mm
OBD10 x 0.5 x 0.65 x 0.8 0.38 x 0.5 x 0.6 0.3 x 0.38 x 0.45 266 x 345 x 455 x 19.5mm

* With MW-1(B), C-mount adapter can only be extended 30 mm, so these data do not apply.

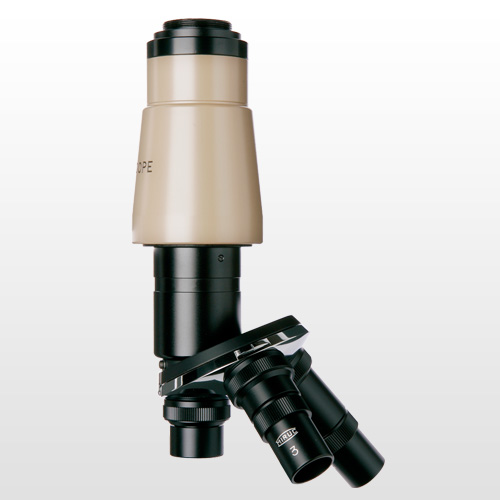

Miruc Lens type KZ-1 (B), VZ-45

* Zoom lens barrel data guide table / (on 9 inch monitor)


 Field of vision (vertical x horizontal x diagonal) mmMonitor MagnificationWorking
distance
2/3 Inch
CCD		1/2 Inch
CCD		1/3 Inch
CCD		2/3 Inch
CCD		1/2 Inch
CCD		1/3 Inch
CCD
Zoom 0.7 x 8.4 x 10.7 x 13 6.3 x 8.2 x 10 4.75 x 6.2 x 7.5 16 x 21 x 28 x 93mm
Zoom 1.0 x 5.8 x 7.4 x 9 4.4 x 5.65 x 6.8 3.28 x 4.32 x 5.2 23 x 30 x 40 x 93mm
Zoom 2.0 x 2.9 x 3.7 x 4.5 2.2 x 2.82 x 3.4 1.64 x 2.16 x 2.6 47 x 60 x 80 x 93mm
Zoom 3.0 x 1.95 x 2.5 x 3 1.5 x 1.9 x 2.3 1.1 x 1.43 x 1.73 70 x 90 x 120 x 93mm
Zoom 4.0 x 1.45 x 1.85 x 2.25 1.1 x 1.4 x 1.7 0.82 x 1.08 x 1.3 94 x 122 x 160 x 93mm
Zoom 4.5 x 1.3 x 1.65 x 2 0.96 x 1.28 x 1.55 0.72 x 0.98 x 1.18 105 x 137 x 176 x 93mm

* Working distance fixed 93 mm.





Miruc Lens type V-45

* Lens barrel data guide table / (On 09 -inch monitor )


 Field of view (vertical x horizontal x diagonal) mmMonitor magnificationWorking
distance
2/3 Inch
CCD		1/2 Inch
CCD		1/3 Inch
CCD		2/3 Inch
CCD		1/2 Inch
CCD		1/3 Inch
CCD
OBD1 x 5.6 x 7.2 x 8.8 4.2 x 5.5 x 6.7 3.1 x 4.2 x 5.2 20.4 x 31 x 41 x 175mm
OBD2 x 2.8 x 3.8 x 4.6 2.1 x 2.75 x 3.3 1.6 x 2.1 x 2.5 40.6 x 62 x 80 x 87mm
OBD3 x 2 x 2.5 x 3.1 1.4 x 1.83 x 2.2 1.15 x 1.4 x 1.7 70 x 93 x 123 x 65mm
OBD4 x 1.3 x 1.8 x 2.3 1.03 x 1.39 x 1.7 0.8 x 1.04 x 1.3 93 x 123 x 162 x 46mm
OBD5 x 1.1 x 1.4 x 1.9 0.83 x 1.1 x 1.36 0.71 x 0.85 x 1 116 x 152 x 204 x 40mm
OBD6 x 0.9 x 1.2 x 1.5 0.7 x 0.93 x 1.2 0.52 x 0.7 x 0.83 142 x 180 x 246 x 32mm
OBD8 x 0.6 x 0.8 x 1.1 0.51 x 0.69 x 0.84 0.39 x 0.52 x 0.62 190 x 250 x 325 x 27mm
OBD10 x 0.55 x 0.71 x 0.87 0.41 x 0.55 x 0.66 0.31 x 0.41 x 0.5 230 x 320 x 405 x 21mm
