Shimpo Digital Force Gauge FG-3000
Segera Hubungi Kami :
(62) 778 408 6403
(62) 815 3611 0114
sales@lfc.co.id
Shimpo FG-3000 Series is devised as a simple and cost-effective digital force gauges which measure tension and compression testing instantly. Shimpo FG-3000 is a handheld operated with compact enclosure of a large back-lit LCD. Shimpo FG-3000 units were designed with multi-language menu programming for intuitive set-up of the instrument for your fully customized parameter. 3 modes of operation are selectable: Track mode displays live readings, Peak mode records the maximum reading sensed during the test, and Pre-set mode which allows the user to manually set high and low limit set points. The programmable limits provide a quick visual and audible indication if a test passes or fails. Furthermore, USB connection and comparator output allows you to integrate Shimpo FG-3000 for repetitive testing which can also be viewed on screen display, sent to optional printer, or statistical analysis on the software.
The Shimpo FG-3000 display analog bar graph which provides perspective of current reading in comparison to the full scale range. Your graphical analysis of comprehension and operation can be easily dermined by a Pass/Fail icons for an instant response of the testing result while a storage symbol confirm when a reading is logged. A menu-selectable display orientation streamlines switching from push to pull testing for portable or test stand applications. The Shimpo FG-3000 allows you to have a data logging up to 500 readings for instant data acquisition. The data The Shimpo FG-3000 are available from 2.2 to 220 lb ranges providing a larger option for various applications such as, incoming quality inspect ion, finished goods testing, R&D or almost any portable or force stand testing requirement.
Shimpo Digital Force Gauge Shimpo FG-3000 Features:
- Compact form factor with a sturdy yet ergonomic die cast aluminum enclosure allows for handheld operation and flexible user comfort.
- Multi-language and engineering unit’s selection provides.
- Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode.
- 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results.
- Three mode operation: Track, Peak & Preset Limits.
- 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand.
- Comparator output function provides user with easy Pass/Fail testing system integration capabilities.
- 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis.
- Field Calibration capability eliminates the cost to send this digital force gauges to external lab.
- Calibration Certificate included along with popular adapter attachments.
- Free Data logging/graphing software available for free download on website.
SPESIFIKASI Shimpo Digital Force Gauge FG-3000
| Accuracy | ± 0.3% F.S. |
| Selectable Units | N, kgf, gf, ozf, and lbf. (Depending on Range) |
| Overload Capacity | 150% of F.S. (LCD flashes beyond 110% of F.S.) |
| Measurement Method | Peak, Track, Preset |
| Data Sampling Rate | 1000 Hz |
| Display | 160*128 dot matrix LCD with Backlight |
| Display Update Rate | 10 times/second |
| Resolution | See chart |
| Memory | 500 data |
| Set Point | Programmable high and low limits in Preset Mode |
| Battery Indicator | Display flashes battery icon when battery is low |
| Power | 3.6VDC 800mAH Ni-MH rechargeable batteries |
| Battery Life | Approximately 16 hours continuous use per full charge |
| Charger / Adaptor | Universal USB/BM charger, Input: 110 ~ 240VAC |
| Temperature Effects | <0.054% per °F (0.03% FS per °C) |
| Outputs | USB, RS-232; High & Low Limit NPN’s |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Storage Relative Humidity | 20 to 80% |
| Housing | Aluminum |
| Storage Temperature | -4 to 122°F (-20 to 50°C) |
| Oper. Relative Humidity | 5 to 95% |
| Dimensions | 5.5 x 2.8 x 1.4″ (140 x 71 x 35.5 mm) |
| Product Weight | 0.9 lb (0.4 kg) |
| Package Weight | 2.25 lb (1 kg) |

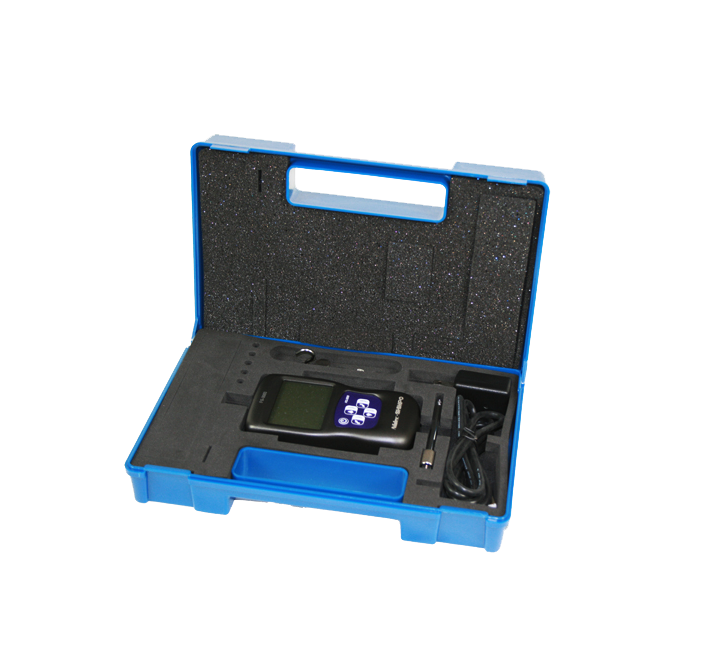

| Included Accessories | AC Adaptor/Charger, USB cable, calibration cert., 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft |
Shimpo Digital Force Gauge FG-3000 Model Selection Guide:
| Model | N | kgf | ozf | lbf | |
| FG-3003 | Capacity | 10.00 | 1.000 | 35.00 | 2.200 |
| Resolution | 0.01 | 0.001 | 0.01 | 0.001 | |
| FG-3005 | Capacity | 50.00 | 5.000 | 180.0 | 11.00 |
| Resolution | 0.01 | 0.001 | 0.1 | 0.01 | |
| FG-3006 | Capacity | 100.0 | 10.00 | 350.0 | 22.00 |
| Resolution | 0.1 | 0.01 | 0.1 | 0.01 | |
| FG-3008 | Capacity | 500.0 | 50.00 | 1800 | 110.0 |
| Resolution | 0.1 | 0.01 | 1 | 0.1 | |
| FG-3009 | Capacity | 1000 | 100.0 | 3500 | 220.0 |
| Resolution | 1 | 0.1 | 1 | 0.1 | |
Shimpo Digital Force Gauge FG-3000 Accessories Selection Guide:
| FG-7CHRG | Charger |
| FG-7USB | USB Cable |
| FG-HK | Hook Adapter (M6) |
| FG-7FL | Flat Adapter (M6) |
| FG-7CN | Cone Adapter (M6) |
| FG-7CL | Chisel Adapter (M6) |
| FG-7GV | Notched Adapter (M6) |
| FG-7RD | Extension Rod (M6) |
| FG-PRINT | Portable Thermal Printer |
