Shimpo TT Torque Tool Testers
Segera Hubungi Kami :
(62) 778 408 6403
(62) 815 3611 0114
sales@lfc.co.id

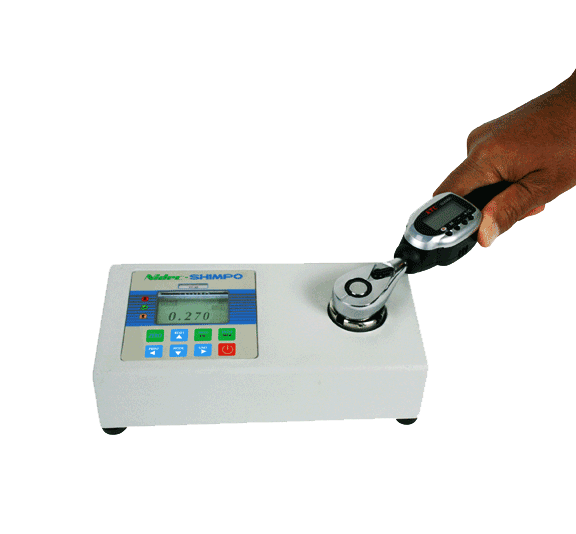

Shimpo TT Digital Torque Tool Tester is devised to simplify the complicated calibration process of your various torque based hand-tool. Shimpo TT Torque Tool Testers have wide range of comparator functions for quickly checking torque tool performance up to 221 ft-lb (300 N-m). The Shimpo TT’s provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The Shimpo TT’s have four modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records the first peak reading over the test and Track/ Peak which shows both the live readings as well as the peak reading recorded.
Equipped with clear analog bar graph on the backlit LCD, the Shimpo TT Torque Tool Testers allow even first time user to see measurement result of torque’s current position compared to the full scale range. CW/CCW icons assist users with ensuring proper test setup. Pass/fail LED’s (HI/OK/LO) produce live test feedback allowing instant determination of the results. Every tester comes standard with USB and RS-232 output. The Shimpo TT’s software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values.
The versatile features of Shimpo TT Torque Tool Testers offer a valuable investment to your production and quality control departments. Regular check up and test will allow your production and assembly line to stay accurate which also allows you to know the remaining life assesment of your various power-tool. The Shimpo TT Series provides exceptional accuracy for measuring torque on various products including torque wrenches, manual screwdrivers, powered torx-allen key locking and various torque controlled power tool of either electrical or pneumatics.
Shimpo TT Torque Tool Testers Features:
- Rigid and compact aluminum enclosure allows light-weight application, portability and usage in any industrial floor as well as calibration lab environment.
- Four modes operation for flexibility: Track, Peak, First Peak & Track/Peak
- High-resolution, backlit graphical display with analog bar graph and CW/CCW direction indication provides fast graphical interpretation of tool response
- Pass-Fail LED light indicators enable quick determination of tool performance acceptance
- Units come standard with USB or RS232 communication output for data upload
- 500 memory record storage plus software provides easy data transfer
- 0.5% FS accuracy provides a sufficient standard for checking tools on ranges up to 221 ft-lb (300 N-m)
- Operation via the rechargeable battery or the AC adapter
- Included rundown adapter for power tool testing
- Calibration certificate with data guarantees performance upon purchase
SPESIFIKASI Shimpo TT Torque Tool Testers
Shimpo TT Torque Tool Testers Ordering Guide:
| Shimpo TT Torque Tool Tester Selectable Range By Unit / Resolution | |||||||
| Models | N-mm | N-cm | N-m | kgf-cm | kgf-m | in-lbf | ft-lbf |
| TT-0.5 | 500 (0.1) | 50 (0.01) | 0.5 (0.0001) | 5.099 (0.001) | 0.0509 (0.0001) | 4.425 (0.001) | 0.3688 (0.0001) |
| TT-1 | 1000 (0.2) | 100 (0.02) | 1 (0.0002) | 10.2 (0.002) | 0.1019 (0.0001) | 8.852 (0.002) | 0.7374 (0.0002) |
| TT-5 | 5000 (1) | 500 (0.1) | 5 (0.001) | 50.99 (0.01) | 0.5098 (0.0001) | 44.25 (0.01) | 3.688 (0.001) |
| TT-10 | 10000 (2) | 1000 (0.2) | 10 (0.002) | 102 (0.02) | 1.0196 (0.0002) | 88.52 (0.02) | 7.374 (0.002) |
| TT-25 | 25000 (5) | 2500 (0.5) | 25 (0.005) | 254.9 (0.05) | 2.549 (0.0005) | 221.3 (0.05) | 18.435 (0.005) |
| TT-50 | - | 5000 (1) | 50 (0.01) | 509.8 (0.1) | 5.098 (0.001) | 442.5 (0.1) | 36.88 (0.01) |
| TT-100 | - | 10000 (2) | 100 (0.02) | 1019.7 (0.2) | 10.196 (0.002) | 885.2 (0.2) | 73.74 (0.02) |
| TT-200 | - | 20000 (5) | 200 (0.05) | 2039.4 (0.5) | 20.39 (0.005) | 1770 ( 0.5) | 147.5 (0.05) |
| TT-300 | - | 30000 (5) | 300 (0.05) | 3059 (0.5) | 30.59 (0.005) | 2655.5 (0.5) | 221.25 (0.05) |
Selectable Accesories For Shimpo TT Torque Tool Testers Ordering Guide:
| TTRNA-1 | Rundown adapter. 8.85 in-lbf (1 N-m) 1/4˝ hex connection |
| TTRNA-5 | Rundown adapter. 44.25 in-lbf (5 N-m) 1/4˝ hex connection |
| TTRNA-10 | Rundown adapter. 88.5 in-lbf (10 N-m) 1/4˝ hex connection |
| TTRNA-25 | Rundown adapter. 221 in-lbf (25 N-m) 3/8˝ hex connection |
| TT-BP | Mounting base plate for TT. (Note: TT-25 and larger capacities come standard with base plate.) |
