  4. Shimpo Wedge Grips Force Gauge Jig FGTT-532

Untuk mendapatkan informasi lebih lengkap tentang:

Shimpo Wedge Grips Force Gauge Jig FGTT-532

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Shimpo Wedge Grips Force Gauge Jig FGTT-532 is devised for firmly holding a test specimen with up to 5000 Newton of force, which are suitable for pulling plates, solids shaft, rubber composite bars, fiber optics or just about any solid material within a the touch of a lever. This self-tightening mechanism allows any digital or analog force gauge to run a precision testing of pull combination with either motorized-programmable force test or with manual pulling stand combination.

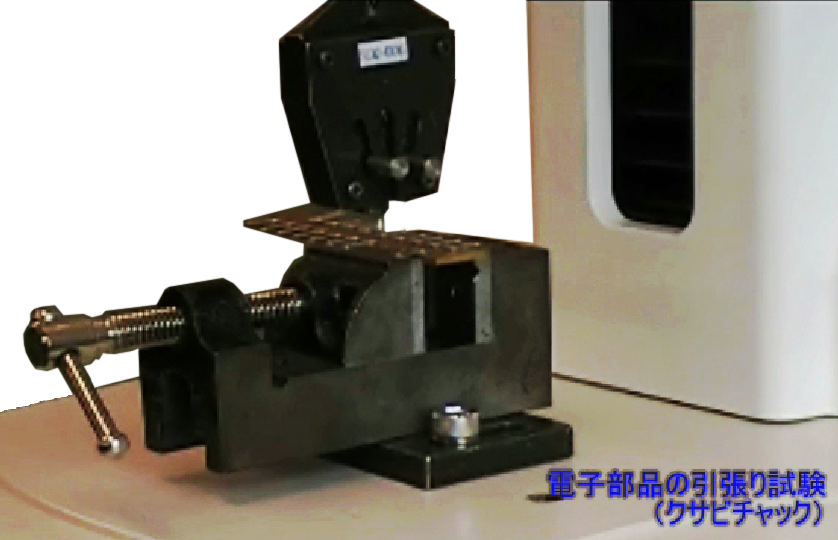

You can also clamp the lower end part of the specimen with regular locking vise while using this compact clamping attached to the force gauge connecting pin. Shimpo Wedge Grips Force Gauge Jig FGTT-532 is highly recommended for any Shimpo force gauge or any brands on your current workbench. Depend on your budget, you can also order this heavy duty clamp with either manual hand-crank lever or or Shimpo motorised digital stand as well. However if you are considering a clamp with 500 Newton of force is appropriate, you might also wants to consider Shimpo Wedge Grips Force Gauge Jig GC-50.



Shimpo Wedge Grips Force Gauge Jig FGTT-532 features:

  • The self-tightening mechanism with a wedge effect firmly holds the test piece up to 5000 Newton.
  • The test piece can be easily attached and removed with one touch, thus allowing efficient operation.
  • Compatible gauge attachement with all Shimpo force gauge such as FGJN-1～50, FGP-1～50 and FGPX-1～50.
  • Suitable tensile rupture tests on bars and plates and many more.



SPESIFIKASI Shimpo Wedge Grips Force Gauge Jig FGTT-532

Shimpo Wedge Grips Force Gauge Jig FGTT-532 Ordering Guide:



型式 / Product number FGTT-532
　試験方向 / Operating direction 引張り / Pulling
　許容荷重 / Maximal load 5000N
口幅 / Mouth width
 8mm
　開き幅 / Open width 0～5mm

　取付可能フォースゲージ

Compatible With All Shimpo Force Gauge

 FGx-1～100
　質量 / Weight Upper side: about 200g
Lower: about 470g



Harga Shimpo Wedge Grips Force Gauge Jig FGTT-532

Silahkan isi formulir di bawah ini untuk mendapatkan harga terbaik dari tim kami.
