  4. Sylvac Digital Dial Indicator S_Dial PRO BASIC

Untuk mendapatkan informasi lebih lengkap tentang:

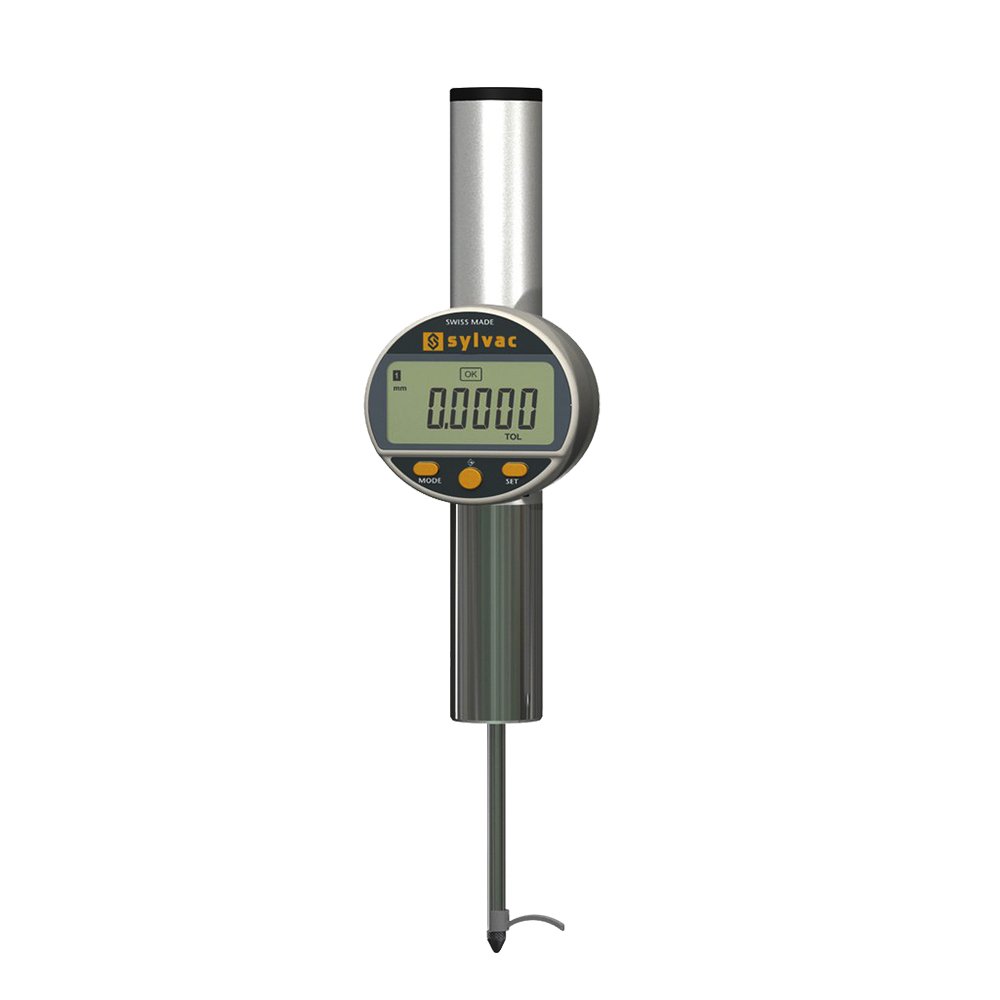

Sylvac Digital Dial Indicator S_Dial PRO BASIC

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Sylvac S_Dial PRO BASIC indicators have a measuring capacity of 50mm with a resolution of 0.0001 mm and a repeatabilty up to 2µm so that the presence, or exact quantity, of some small distance can be conveniently realized (for example, a small height difference between two flat surfaces, a slight lack of concentricity between two cylinders, or other small physical deviations). With a largely visible LCD display, all measurements can be displayed.



Sylvac S_Dial PRO BASIC Features :

  • Resolution of 0.1 μm
  • Broad choice of functions (MIN/MAX/DELTA, TOL, Facteur, PRESET, AUTO OFF, etc.)
  • Max error 1.5 μm / 50mm
  • Constant measuring force (depending on model)
  • Clamping stem ø8 or ø25 (depending on model)
  • Mixed ceramic bearing / ball bearing system
  • Measuring system with homing
  • Battery life : 2 years
  • Data output PROXIMITY and POWER



Sylvac S_Dial PRO BASIC Benefits :

  • Accurately measure small distances and angles, and amplify them for more obvious readings.
  • Checking the variation in tolerance during the inspection process of a machined part, measure the deflection of a beam or ring under laboratory conditions.
  • Allows on-site measurement and fabrication inspection properly recorded in a tabular dataset (such as a database table or spreadsheet).





SPESIFIKASI Sylvac Digital Dial Indicator S_Dial PRO BASIC

Sylvac Digital Indicator S_Dial PRO BASIC Dimensions:

Sylvac Digital Indicator S_Dial PRO BASIC dimensions



Sylvac Digital Indicator S_Dial PRO BASIC Ordering Guide:

    805-8501 805-8502 805-8601 805-8701 805-8602 805-8702 805-8661
 Measuring range  mm 25 50 100
 Resolution  mm 0.0001
 Max. Error fe  µm 1.0 1.2 1.8
 Repeatability  µm 0.2
 Output data  USB / RS232 / Bluetooth® wireless technology
 Programmable by PC  •
 Clamping ∅8h6 ∅25g7 ∅8h6
 Spring • 1) • 1) • 1) •
 Measuring force  N 0.75 - 1.00 2) 0.30 2) 0.85 - 1.2 2) 0.40 2) 0.85 - 1.20 2) 0.40 2) 0.90 - 1.30 2)
 IP rating IP51
 Standard functions (customisable by PC)

mm.inch, ref I/II, preset (max 99.9999)

min/max/delta, tolerances, resolution, measuring direction, multiplier, automatic extinction/manual, keylock

  1) Model without spring: Constant measuring force, use only in a vertical position

2) The values agree withtin ±20% (vertical down, measuring rod outgoing)
