Mark-10 Series 4 Performance Digital Force Gauges
Segera Hubungi Kami :
(62) 778 408 6403
(62) 815 3611 0114
sales@lfc.co.id
Series 4 digital force gauges are designed for tension and compression force testing in numerous applications across every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is ±0.2% of full scale, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
On-board data memory for up to 50 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload-protected to 200% of capacity, and an analog load bar is shown on the display for a graphical representation of applied force.

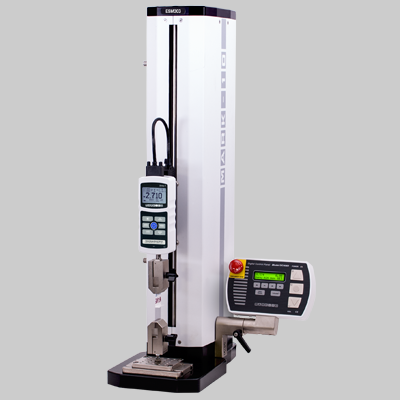

An ergonomic, reversible aluminum design allows for hand-held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.
The gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single-point data. One-click export to Excel allows for further data manipulation.
- High-speed 3,000 Hz sampling rate
- USB, RS-232, Mitutoyo, and analog outputs
- Large backlit graphic display
- 50-point data memory with statistics (min, max, mean, standard deviation) and outputs
- Live load bar graph with set point markers
- Programmable set points with alarms and outputs
- Peak readings and set points are always displayed
- 5 selectable units of measurement
- Configurable audio alarms and key tones
- Password protection, configurable for individual keys and calibration
Dimensions
SPESIFIKASI Mark-10 Series 4 Performance Digital Force Gauges
| Accuracy: | ±0.2% of full scale | |
| Sampling rate: | 3,000 Hz | |
| Power: | AC or rechargeable battery. A multi-step low battery indicator is displayed, and the gauge shuts off automatically when the power is too low. | |
| Battery life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
|
| Measurement units: | lbF, ozF, gF, kgF, N, kN, mN (depending on the model) | |
| Outputs: | USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity, General purpose: Three open drain outputs, one input. Set points: Three open drain lines. |
|
| Safe overload: | 200% of full scale (display shows “OVER” at 110% and above) | |
| Weight: | M4-012 - M4-100: 1.0 lb [0.5 kg] M4-200 - M4-500: 1.2 lb [0.5 kg] |
|
| Shipping weight: | M4-012 - M4-100: 3.0 lb [1.4 kg] M4-200 - M4-500: 3.2 lb [1.5 kg] |
|
| Environmental requirements: | 40 – 100°F, max. 96% humidity, non-condensing | |
| Warranty: | 3 years (see individual statement for further details) | |
| Conformance: | CE, UKCA | |
| HS code: | Model no. | HS code: |
| M4 (all capacities) | 9024100000 | |
| 15-1004 AC1109 AC1111 AC1118 AC1030 AC1031 AC1032 AC1035 AC1052 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
