Mark-10 Series TT02 Torque Tool Testers
Segera Hubungi Kami :
(62) 778 408 6403
(62) 815 3611 0114
sales@lfc.co.id

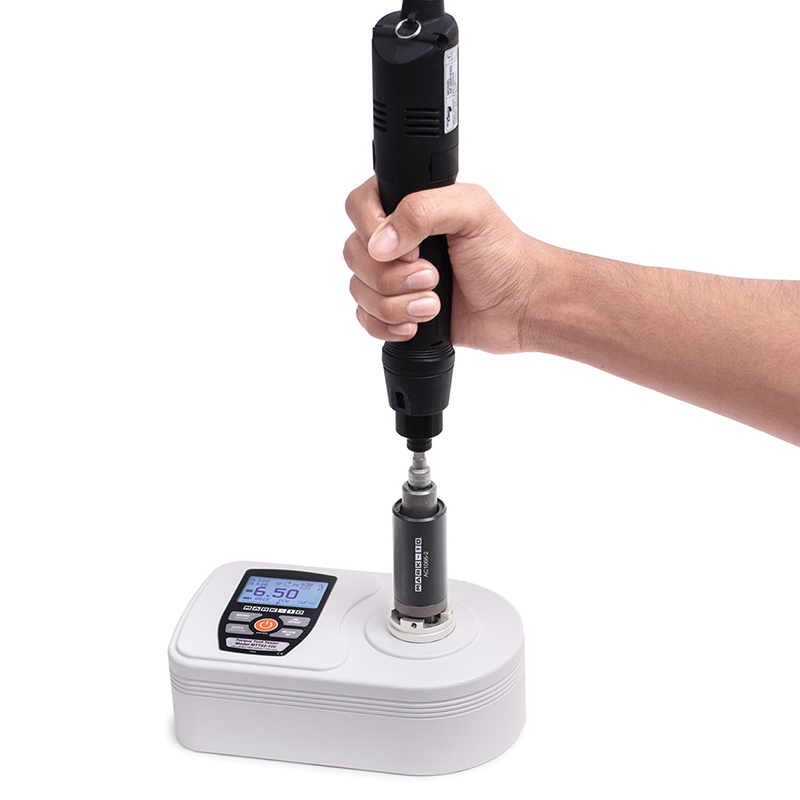

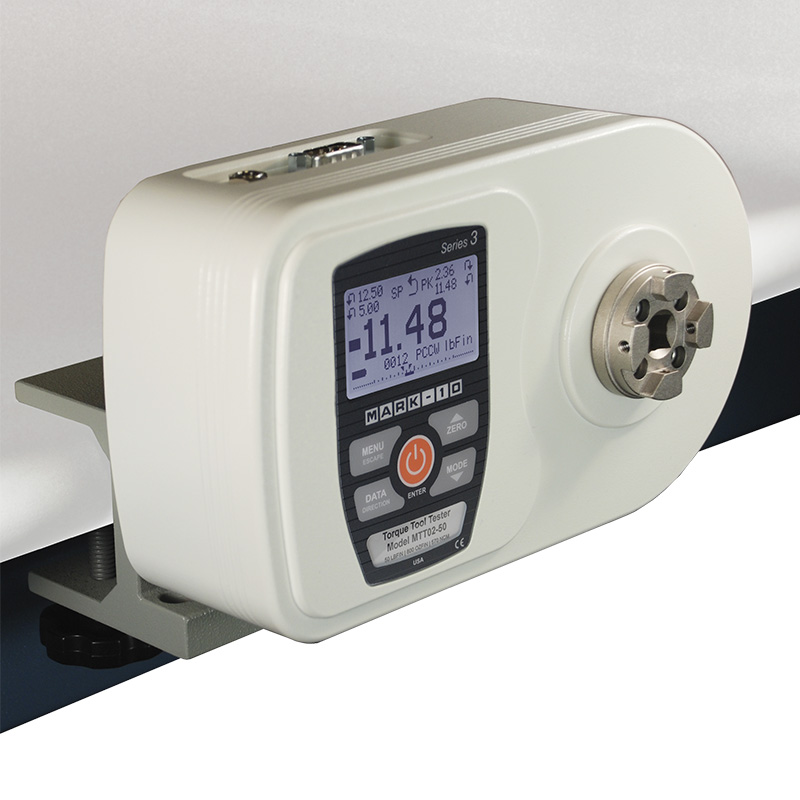

Series TT02 Torque Tool Testers present a simple and accurate solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions, and also calculates 1st and 2nd peaks, useful for click-type tools.
A blazingly fast sampling rate of 7,000 Hz and accuracy of ±0.3% produce reliable and consistent test results. The TT02 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output/zeroing/data storage upon tool slip or click, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.
Series TT02 testers include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data stored in the TT02’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
Note: Not for use with impact tools.
Dimensions
SPESIFIKASI Mark-10 Series TT02 Torque Tool Testers
| Accuracy: | ±0.3% of full scale | |
| Sampling rate: | 7,000 Hz | |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low. | |
| Battery life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
|
| Measurement units: | ozFin, lbFin, kgFcm, Nm, Ncm | |
| Output: | USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity, General purpose: Three open drain outputs, one input. Set points: Three open drain lines. |
|
| Configurable settings: | 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration | |
| Safe overload: | 150% of full scale (display shows “OVER” at 110% and above) | |
| Weight: | 5.8 lb [2.6 kg] | |
| Shipping weight: | 9 lb [4.1 kg] | |
| Environmental requirements: | 40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing) | |
| Warranty: | 3 years (see individual statement for further details) | |
| HS code: | Model no. | HS code: |
| MTT02 (all capacities) | 9024100000 | |
| CERT ST001,2 AC1066-1,-2 15-1004 AC1111 AC1109 AC1110 AC1118 AC1030 AC1031 AC1032 AC1035 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
