Mark-10 Series TT03 Torque Gauges
Segera Hubungi Kami :
(62) 778 408 6403
(62) 815 3611 0114
sales@lfc.co.id

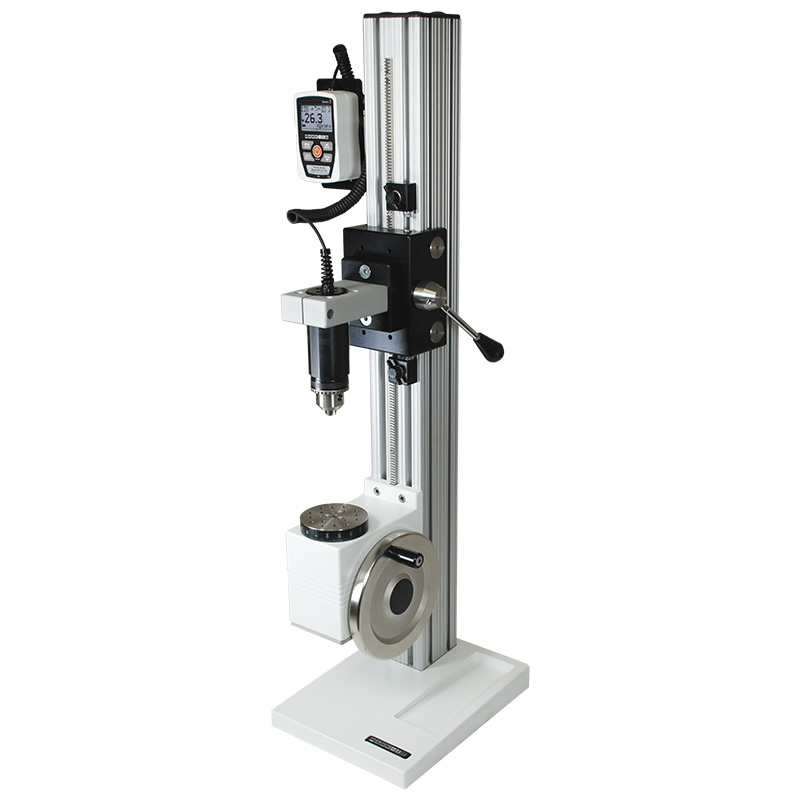

TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges’ rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.
Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.
Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
The gauges include MESUR® Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.
- Ergonomic torque sensor with Jacobs chuck
- Peak torque values saved and displayed
- High-speed 2,000 Hz sampling rate

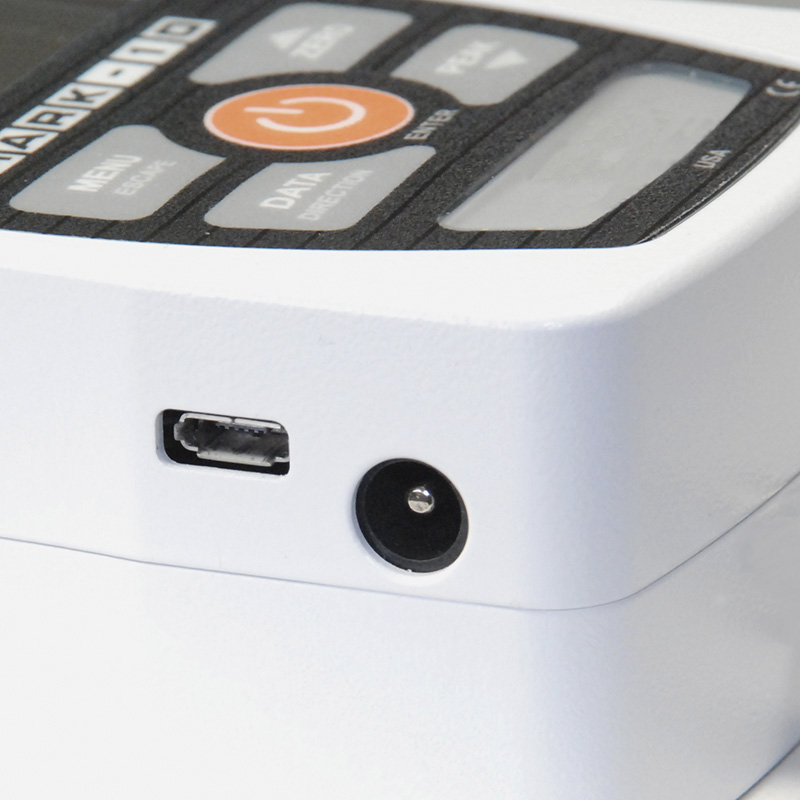

- USB data output of continuous or individual data points
- Programmable set points with pass/fail indicators
- Live load bar graphs with set point markers
- Peak memory for clockwise and counter clockwise readings
- Set points always displayed
- Configurable audio alarms and key tones
- MESUR® Lite data collection software included
- Battery or AC operation
- Safe overload: 150% of capacity
Dimensions
SPESIFIKASI Mark-10 Series TT03 Torque Gauges
| Accuracy: | ±0.5% of full scale | |
| Sampling rate: | 2,000 Hz | |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. | |
| Battery life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
|
| Measurement units: | lbFin, ozFin, kgFmm, Ncm (depending on model) | |
| USB Output: | Configurable to 115,200 baud | |
| Safe overload: | 150% of full scale (display shows “OVER” at 110% and above) | |
| Weight: | 1.8 lb [0.8 kg] | |
| Shipping weight: | 4 lb [1.8 kg] | |
| Environmental requirements: | 40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing) | |
| Warranty: | 3 years (see individual statement for further details) | |
| HS code: | Model no. | HS code: |
| MTT03 (all models) | 9024100000 | |
| CERT 15-1004 AC1111 AC1118 AC1030 AC1031 AC1032 AC1035 AC1123 AC1124 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
