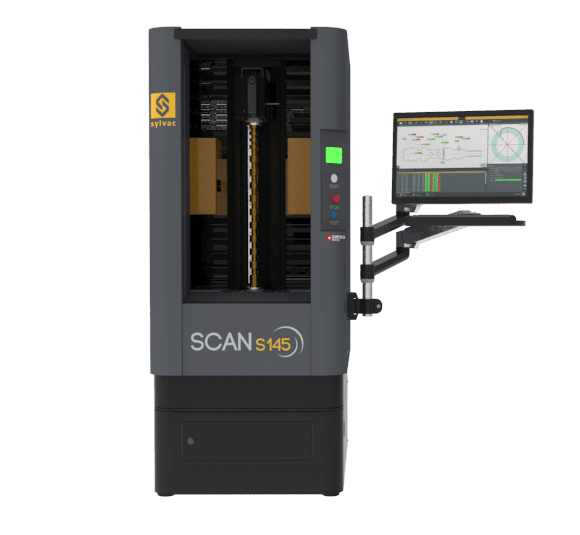

Sylvac Optical Measurement Scan S145

Segera Hubungi Kami :

(62) 778 408 6403

(62) 815 3611 0114

sales@lfc.co.id

Cost Savings at Every Turn

Our non-contact machine is designed for the measurement of large cylindrical parts up tp 100kg. One of our machine can handle virtually all measurements (static and dynamic) on cylindrical parts up to 145mm wide and 615mm long. With a complete 2D part scan taking less than 3 seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.

Intuitive Operation

Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.

Precision and Efficiency

Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and exists with or without tilt system for true comprehensive thread measurement.

Seamless Integration

Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. Also available with ‘Automation Ready’ configuration upon request, to seamlessly integrate into your workflow.

Key benefits

  • Complete Measurement with a Single System: No need for multiple tools; our Scan S145 with the probe covers it all.
  • Seamless Integration with Combined Sensor Measurements: Achieve comprehensive insights effortlessly.
  • User-Friendly Programming: Intuitive functions make programming a breeze.
  • Full Touch Probe Scanning Capability: Precisely measure form.
  • Interchangeable Probe Stylus: For versatile applications.
  • Automated Probe Qualification Routine: Streamlined setup for consistent accuracy.
  • Typical Measurements Include: hole and slot size, location and form, roundness, radial and axial runout

SPESIFIKASI Sylvac Optical Measurement Scan S145

  • Instrument according to technical specifications
  • Adapter for Morse 2 (902-6260)
  • Computer with screen, keyboard and mouse
  • Table 350mm (700mm optional, 902-6611)
  • Windows multilingual operating system
  • Sylvac Reflex SCAN Software +
  • Manual
  • Accessories 902-6210, 902-6380 & Machine stand, with screen & keyboard holder
